Infant Lung Simulators

Adult/Infant Model

“These Lung Simulators easily provide simulation of a variety of lung conditions.”

Infant & Adult Lung Simulators for Respiratory Training and Testing

Michigan Instruments Infant Lung Simulators provide realistic, repeatable simulation of infant and pediatric pulmonary mechanics for respiratory training, ventilator testing, device development, and research.

The Adult-Infant configuration combines an adult and infant lung simulator in one system, allowing users to work with different patient populations and adjust lung mechanics to create a range of respiratory conditions.

If you need to create spontaneous breathing, the model is also available as a Spontaneous Breathing Lung (SBL™).

Request a quote

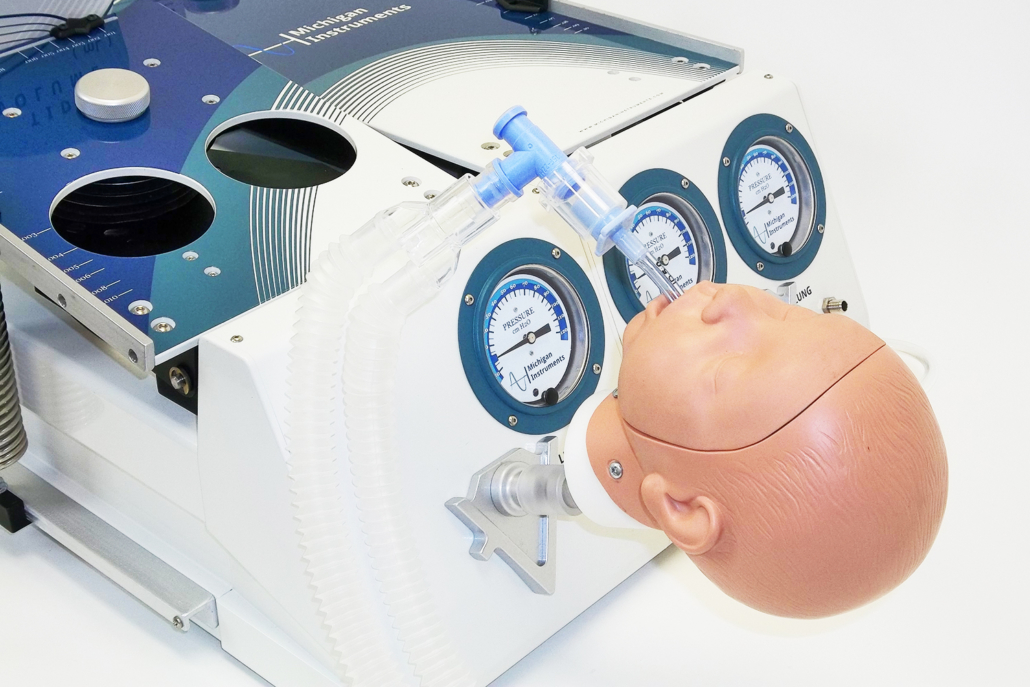

infant test lung simulator on infant dummy

Realistic Infant Lung Simulation You Can Adjust

Our Infant Lung Simulators are designed to help users understand how changes in compliance and airway resistance affect ventilation in smaller patients.

Adjust the simulator to create different respiratory conditions and observe how ventilators and respiratory devices respond.

Simulate:

Different levels of lung compliance
Increased or decreased airway resistance
Healthy and diseased infant lung conditions
Different ventilator settings and respiratory scenarios
Adult and infant conditions using the same system

Adult and Infant Simulation in One System

The Adult-Infant Lung Simulator combines one adult lung and one infant lung in a single unit.

The two lung models operate independently and can be used simultaneously, giving educators, engineers, and researchers the flexibility to work across patient populations.

The system provides:

Adjustable compliance and airway resistance for both lungs
Unfant tidal volume capacity up to 200 mL
Adult tidal volume capacity up to 2.0 L
Independent adult and infant operation
Realistic lung volumes and mechanical response

This configuration is especially useful for programs that train across adult and pediatric populations or need flexibility for different testing applications.

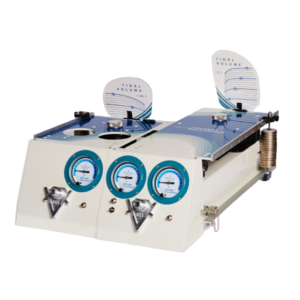

Infant adult test lung simulator from Michigan Instruments

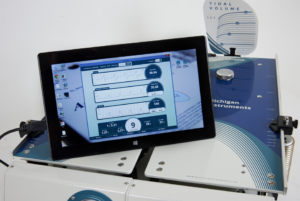

Add PneuView® for Real-Time Measurement

The Adult-Infant Lung Simulator is available with or without PneuView® electronics and software.

PneuView® adds real-time measurement and visualization of respiratory parameters, including:

Pressure
Flow
Volume
Timing parameters
Respiratory waveforms
Data recording and analysis

Explore PneuView®

Built for Training, Testing, and Research

Research & Development
Create controlled infant and pediatric respiratory conditions for research, product development, and testing.

The simulator provides adjustable mechanical conditions that can be repeated across trials, helping researchers evaluate devices and techniques consistently.

Ventilator & Device Testing
Biomedical engineers, manufacturers, and service providers can use Infant Lung Simulators to evaluate ventilators and respiratory equipment under controlled, repeatable conditions.

Applications include:
- Ventilator performance testing
- Equipment verification
- Troubleshooting
- Respiratory device development
- Quality and performance testing

Respiratory Training & Education
Give students hands-on experience with infant and pediatric ventilation in a controlled environment.

Educators can adjust compliance and resistance and observe how those changes affect pressure, volume, and ventilator response.

The simulator can be used to demonstrate:
- Infant respiratory mechanics
- Mechanical ventilation
- Lung compliance
- Airway resistance
- Different disease states
- Ventilator response

HEAD SIMULATION FOR RESPIRATORY SUPPORT APPLICATIONS

An Adult or Infant Head Simulation Module can be added to support applications involving non-invasive ventilation, oxygen delivery, and other respiratory support systems.

The head module provides an additional way to simulate patient-facing equipment and introduce leak and airway-related scenarios.

Why Choose Michigan Instruments Infant Lung Simulators?

Michigan Instruments Lung Simulators are designed for professionals who need realistic, repeatable respiratory simulation without unnecessary complexity.

Our systems provide:

Adjustable compliance and airway resistance
Realistic lung volumes
Independent adult and infant simulation

Durable construction for frequent use
TTL® Analog or PneuView® configurations
Fully Calibrated Instrument

Each simulator is calibrated and includes a Certificate of Calibration.

Find the Right Infant Lung Simulator

Whether you’re training respiratory therapy students, testing pediatric ventilators, or conducting research, Michigan Instruments can help you choose the right configuration for your application.

Request A Quote Today!

Frequently Asked Questions

Can Infant Lung Simulators be used for ventilator testing?

Yes. Infant Lung Simulators can be used to evaluate ventilator performance, troubleshoot respiratory equipment, and test respiratory devices under controlled and repeatable conditions.

Can the adult and infant lungs be used independently?

Yes. The adult and infant lung models operate independently and can also be used simultaneously.

Can I add PneuView® to an Infant Lung Simulator?

Yes. The Adult-Infant configuration is available with PneuView® electronics and software for real-time measurement, waveform visualization, recording, and analysis.

Specifications

PARAMETER	MEASUREMENT RANGE	ACCURACY
Breath Rate*	2 to 1,100 bpm	+/- 1 bpm
Inspiratory/Expiratory Time*	0.3 to 30 sec	+/- 0.03 sec
Tidal Volume (Infant)	5 to 200 mL	+/- 5% or 5 mL
Tidal Volume (Adult)	0.1 to 2.0 L	+/- 3% or 20 mL
Flow Rate* (Infant)	3 to 80 Lpm	(3 to 30 Lpm) +/- 2 Lpm (30 to 80 Lpm) +/- 4 Lpm
Flow Rate* (Adult)	10 to 200 Lpm	(10 to 60 Lpm) +/- 3 Lpm (60 to 200 Lpm) +/- 5 Lpm
Pressure: (Lung/Airway)	-20 to 120 cmH2O* -10 to 120 cmH2O	+/- 2%
Pressure: (Auxiliary Port)*	0 to 100 psi	+/- 5% of user-calibrated Full Scale Output (FSO)
Compliance (Infant)	.001 to .01 L/cmH2O	+/- 3% (at calibration volumes)
Compliance (Adult)	.01 to .10 L/cmH2O	+/- 3% (at calibration volumes)
Resistance	Rp5, Rp10, Rp20, Rp50 (Adult) Rp50, Rp100, Rp200, Rp500 (Infant) cmH2O/L/sec	+/- 5% (at calibration flows)
*-AI3 (PneuView) Model Only

Download
Manual

Download
Manual

Download
Manual
